Description

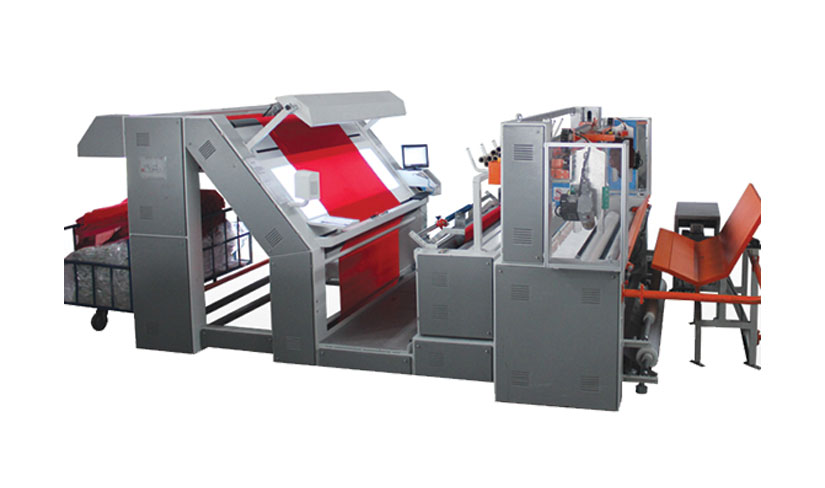

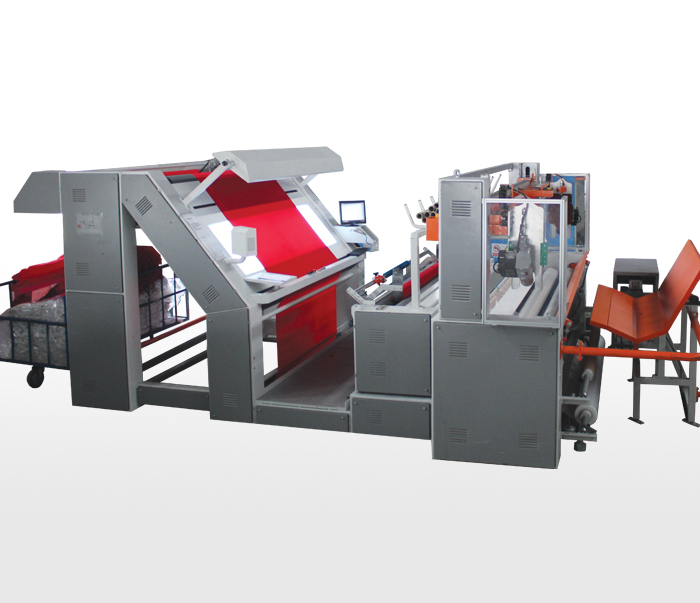

GC-B40 L13 PH / FABRIC INSPECTION MACHINE (WITH FULL LYCRA)
OPEN WIDTH KNITTED FINISHED FABRIC WITH FULL LYCRA INSPECTION
Making inspection and rolling of open width knitted finished fabrics with full lycra and carrying them freely with conveyor system with distance sensor while protecting their skrinkage values.
Automatic stop at the end of fabric, precise meter measurement with tolarence values between (+-) 0.5%.
Opportunity to have rolling process behind operator which enables adaptation to fabric roll packing line and practical discharging to trolley.
Computer aided quality control program.

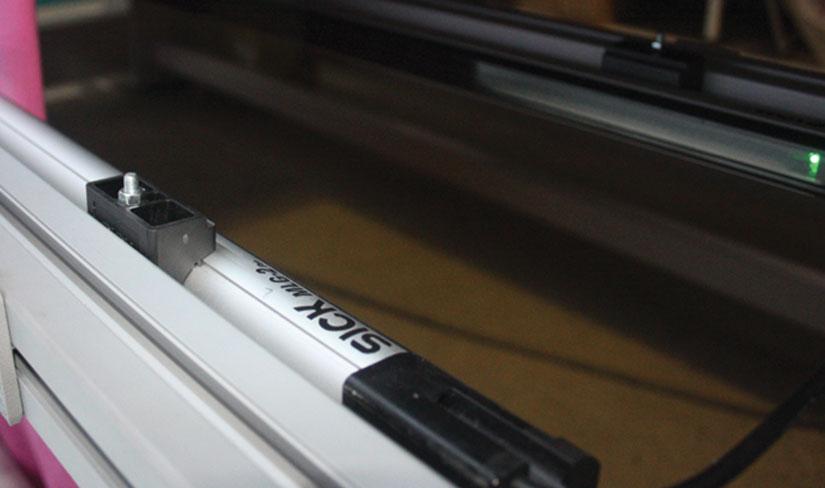

Safely working with barrier sensor.
Measuring roll weight (Optional)
Live fabric width information and saving them with Width Measurement System during inspection process.
Cutting end of the rolls with motor actuated blade. (Optional)
Automatic stop before fabric cutting by detecting sewing line at the end of roll ends with a special sensor. (Optional)
Opportunity to moisturize at desired level and to measure the moisture level before packing or discharging with the aid of moisturizing system. (Optional)

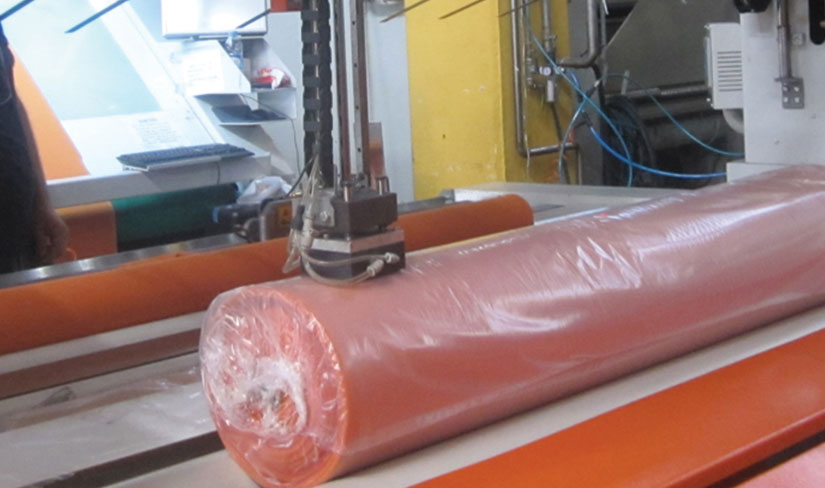

Nylon winding around surface of the roll, edge closing at heads of rolls while hot air blowing.

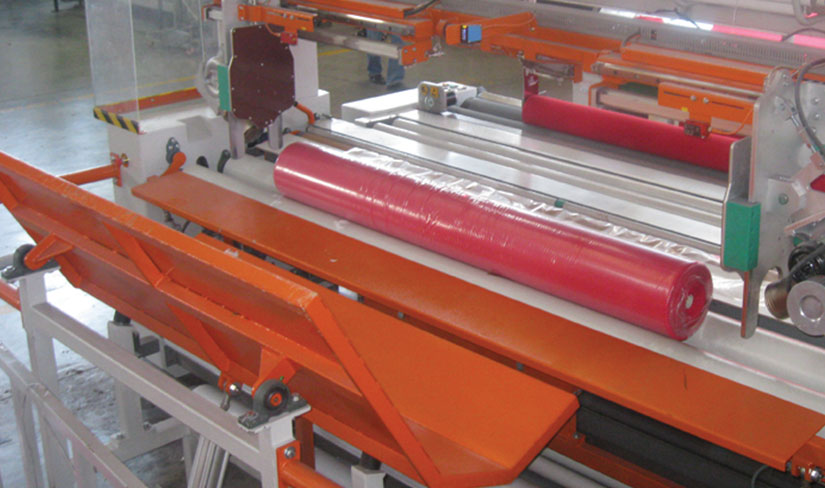

Automatic discharging of packed rolls.
Barcode labeling on top and head surfaces of the roll after packing.
Easy control pf inspection and packing processes with only one operator.
